Even though automation scripts are intended to drive the application under test there are cases when communication with tester is required. With TestComplete, we have a vast arsenal of predefined GUI controls for that (and those, acquainted with Delphi, will be pleasantly surprised by the way it’s organized).

Today’s post provides an example of creating and using dialog with custom event handlers – whenever script user provides input, event handler may be used to provide a customized response.
In the scope of the exercise let’s use the following task.

• Setup form prompts to choose an environment where test plan is to be run
• User can choose one of predefined environments: DEV, SIT, UAT
• Receives a response as a url of the environment
• User can leave suggested by default test data file or can type filepath directly

Preparing Modal Form

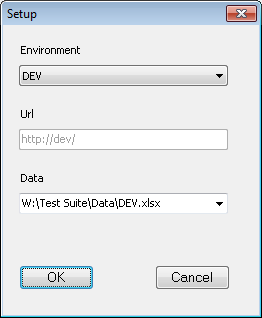

We begin with a sample form.

Add Edit Controls, Buttons, and Labels

Set Object Properties

Form

• Name – object name to use in the code; ‘Security’ in my example
• Caption – title of the window when the form is displayed

Label controls

• Caption – displayed text

Edit Box Control

• Name – object name to use in the code; ‘ShowUrl’ in my example
• Text – initial value
• ReadOnly = True – because user can’t input Url directly

Combo Box Control

• Name – object name to use in the code; ‘Environment’/’TestData’ in my example
• Properties.Items – items to select; ‘DEV’, ‘SIT’, ‘UAT’ in my example
• ItemIndex = 0 – initial selection
• Properties.DropDownListStyle = lsFixedList – for Environment combobox
• Properties.DropDownListStyle = lsEditList – for TestData combobox

Buttons

• Caption – displayed text; ‘OK’/’Cancel’ in my example
• Cancel = True – for ‘Cancel’ button
• ModalResult = mrCancel – for ‘Cancel’ button
• Default = True – for ‘OK’ button
• ModalResult = mrOK – for ‘OK’ button

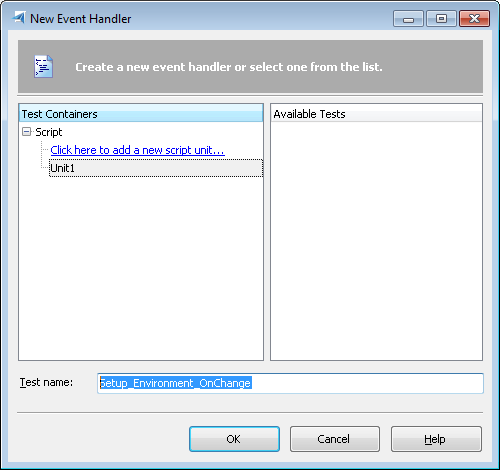

Set Event Handler

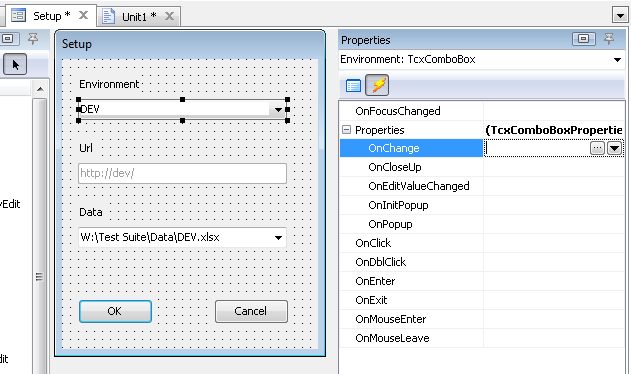

Properties

Path

Code

Public Sub Setup_Environment_OnChange(Sender)
  Dim sEnvironment

  sEnvironment = UserForms.Setup.Environment.Text

  Select Case sEnvironment
    Case "DEV"
      UserForms.Setup.ShowUrl.Text = "http://dev/"
      UserForms.Setup.TestData.Text = "W:\Test Suite\Data\DEV.xlsx"
    Case "SIT"
      UserForms.Setup.ShowUrl.Text = "http://sit/"
      UserForms.Setup.TestData.Text = "W:\Test Suite\Data\SIT.xlsx"
    Case "UAT"
      UserForms.Setup.ShowUrl.Text = "http://uat/"
      UserForms.Setup.TestData.Text = "W:\Test Suite\Data\UAT.xlsx"
  End Select

End Sub

Example

Public Function Form1()
  Dim objDlg
  Dim sEnvironment, sTestData
  Dim Result

  'Get object's instance
  Set objDlg = UserForms.Setup

  'Execute
  Result = objDlg.ShowModal

  If Result = mrOK Then
    'retrieve the selected input
    sEnvironment = objDlg.Environment.Text
    sTestData = objDlg.TestData.Text
  Else
    'Respond
    MsgBox "Execution cancelled", vbOKOnly
    'exit function or finalize execution
  End If

End Function
