Test Automation Architecture (WinRunner)

Posted by Albert Gareev on Jun 15, 2007 | Categories: DocumentsImplementation

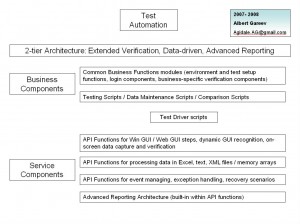

2-tier Data-Driven Test Automation Architecture (WinRunner)

Click to see full-size in a separate window

Business Components

Business Components – Functions that implement a certain business-case testing specific functionality which is used by Test Scripts. Typically Business Components are contained within compiled modules; that allows re-using the implemented logic in a similar Test Scripts. Business Components may incorporate standard WinRunner TSL functions and Service Component functions.

Business Components – Types

  • Testing Scripts / Data Maintenance Scripts / Comparison Scripts
  • Common Business Functions modules (environment and test setup functions, login components, business-specific verification components)


Service Components

Service Components – Functions that implement general (universal) testing functionalities not dependant on a specific application. Service Components are always contained within compiled modules. Service Components may incorporate standard WinRunner TSL functions and other Service Component functions as well.

Service Components – Types

  • API Functions for Win GUI / Web GUI steps, dynamic GUI recognition, on-screen data capture and verification
  • API Functions for processing data in Excel, text, XML files / memory arrays
  • API Functions for event managing, exception handling, recovery scenarios
  • Advanced Reporting Architecture (built-in within API functions)
